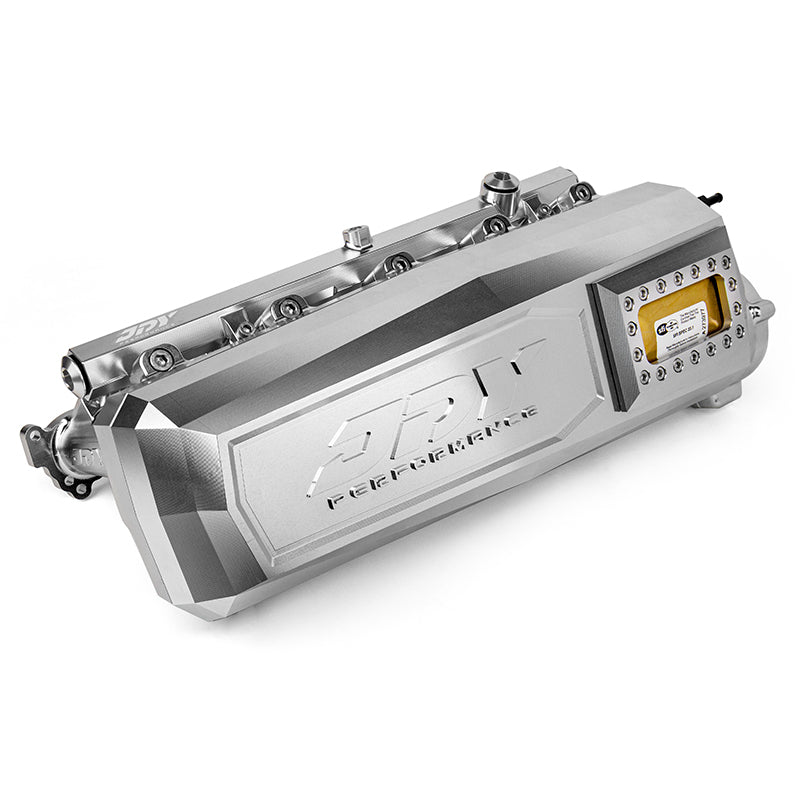

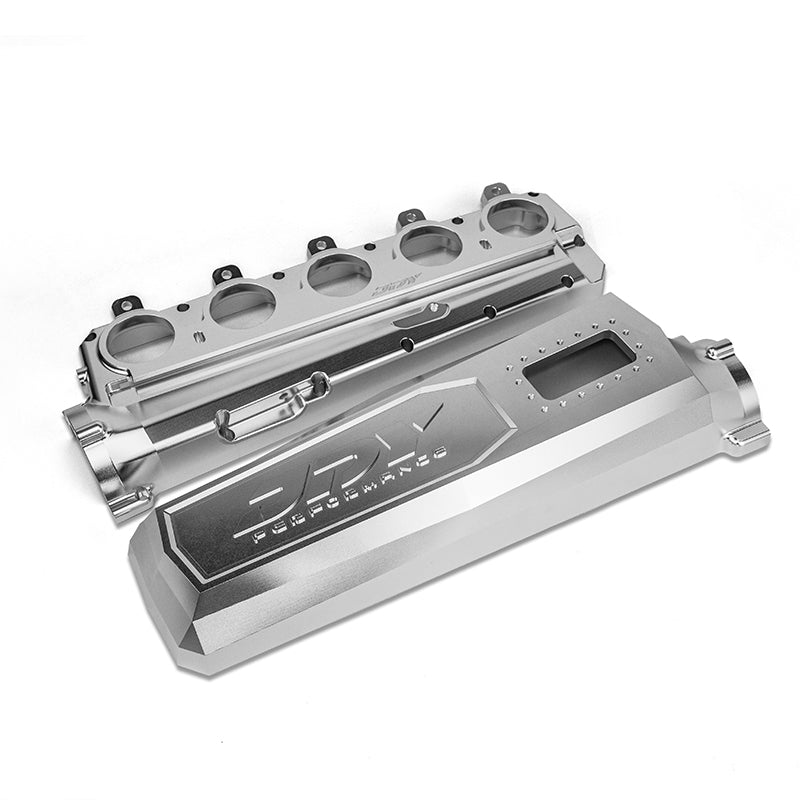

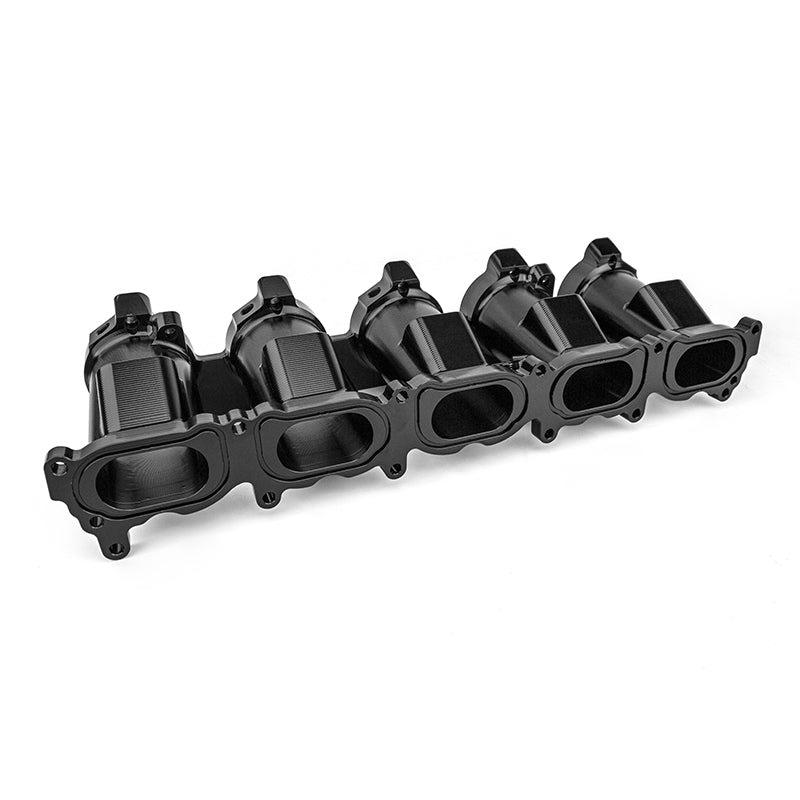

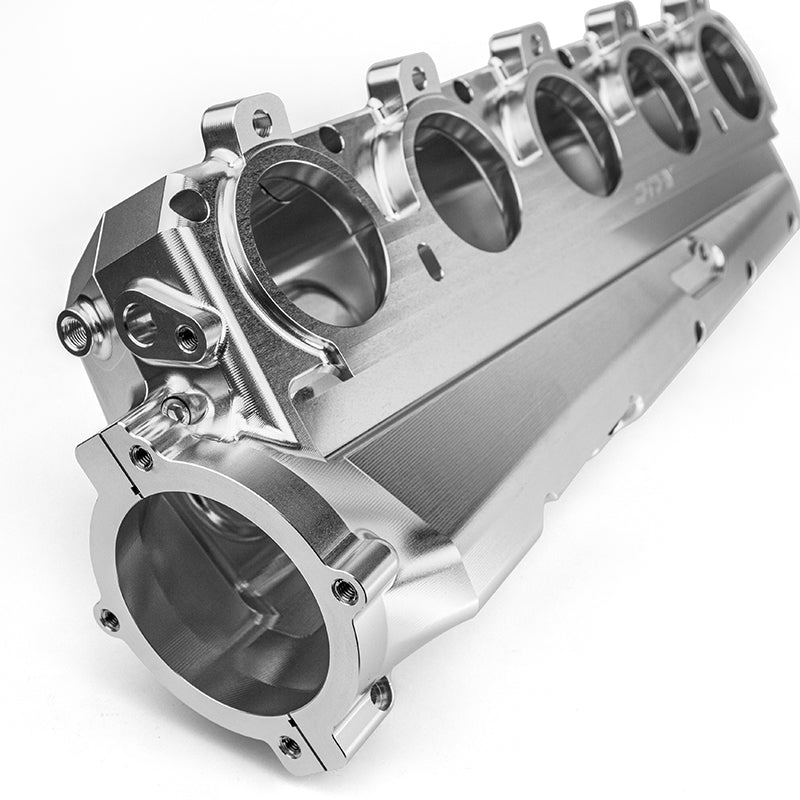

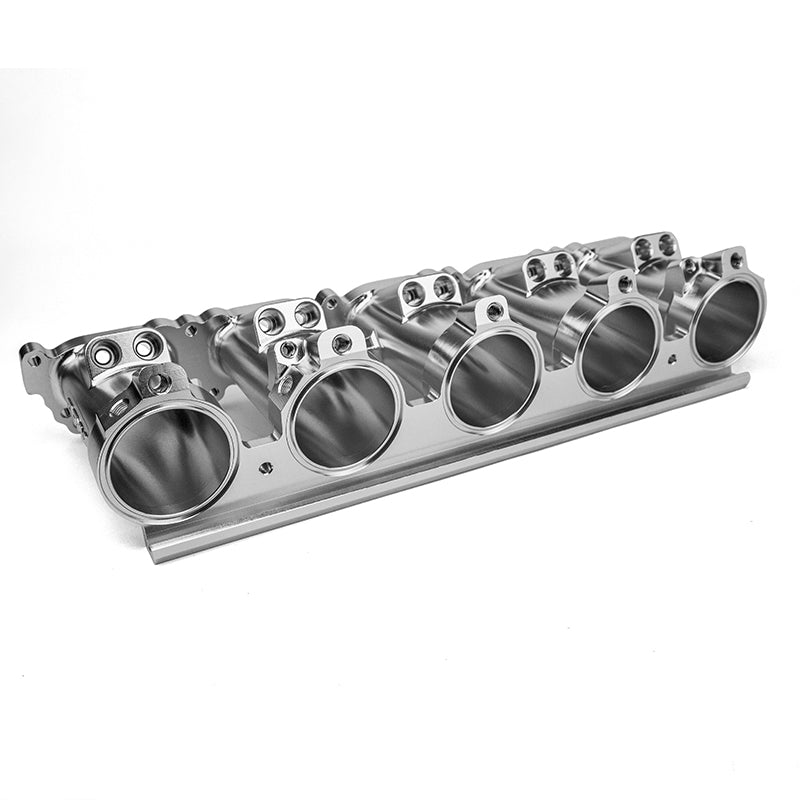

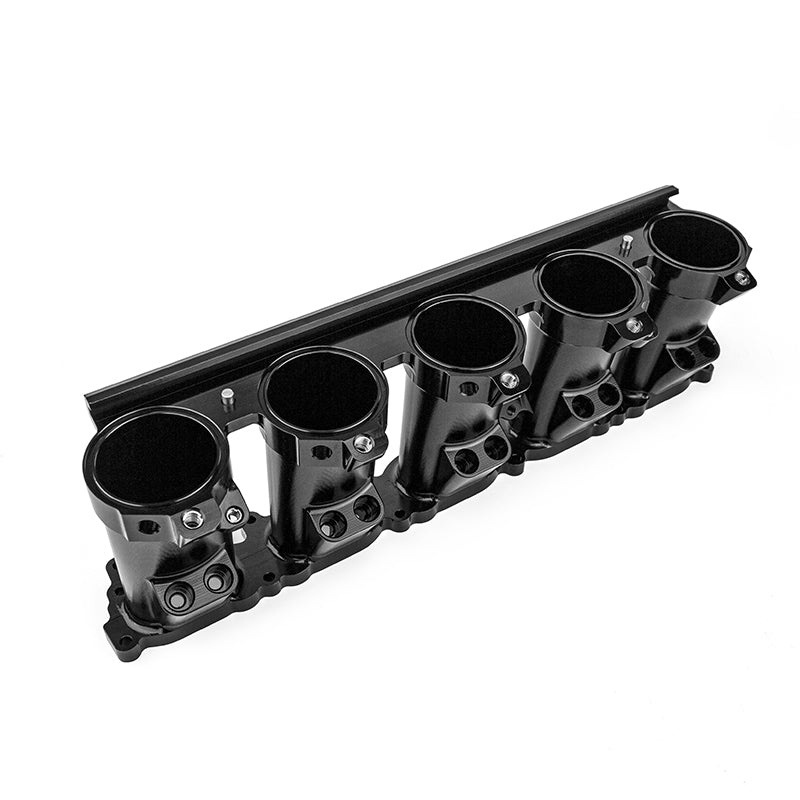

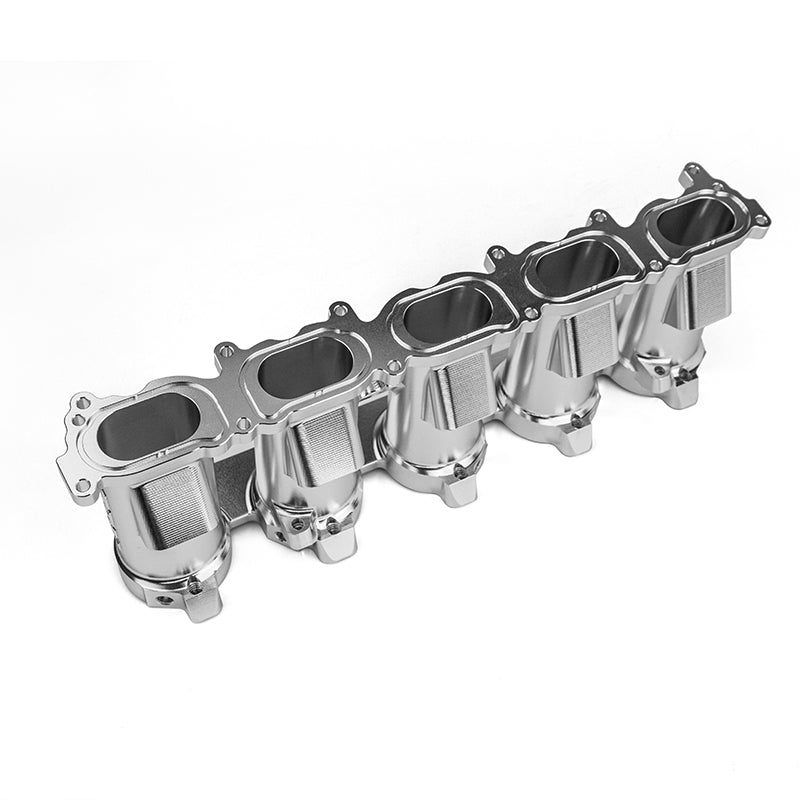

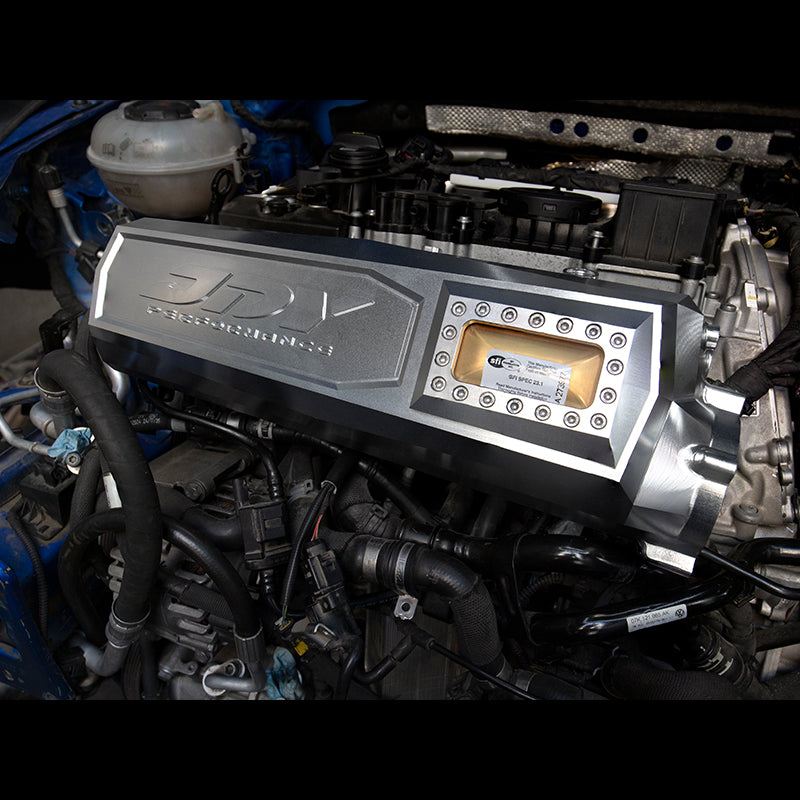

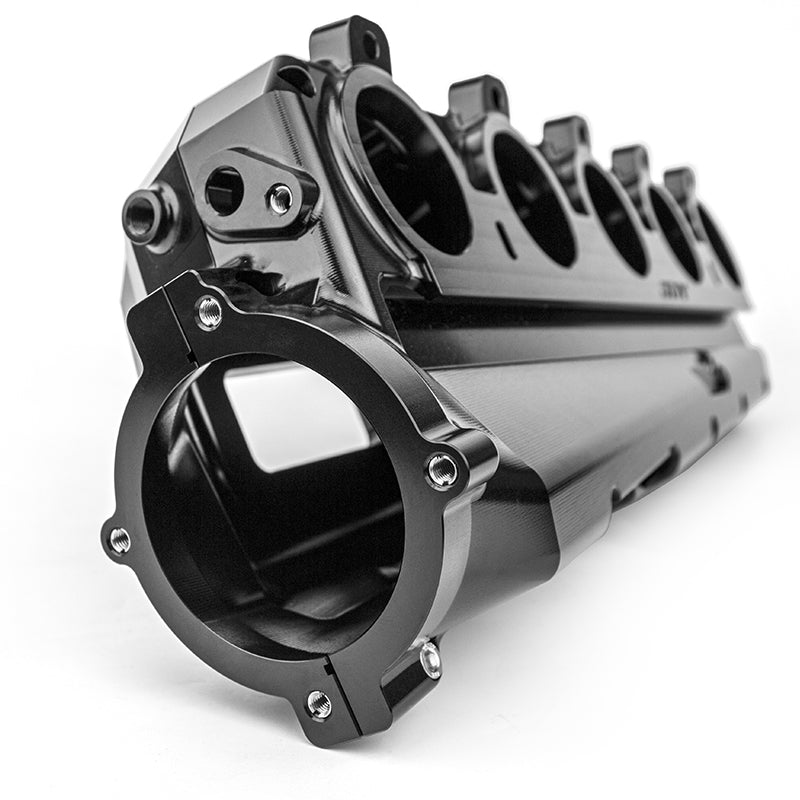

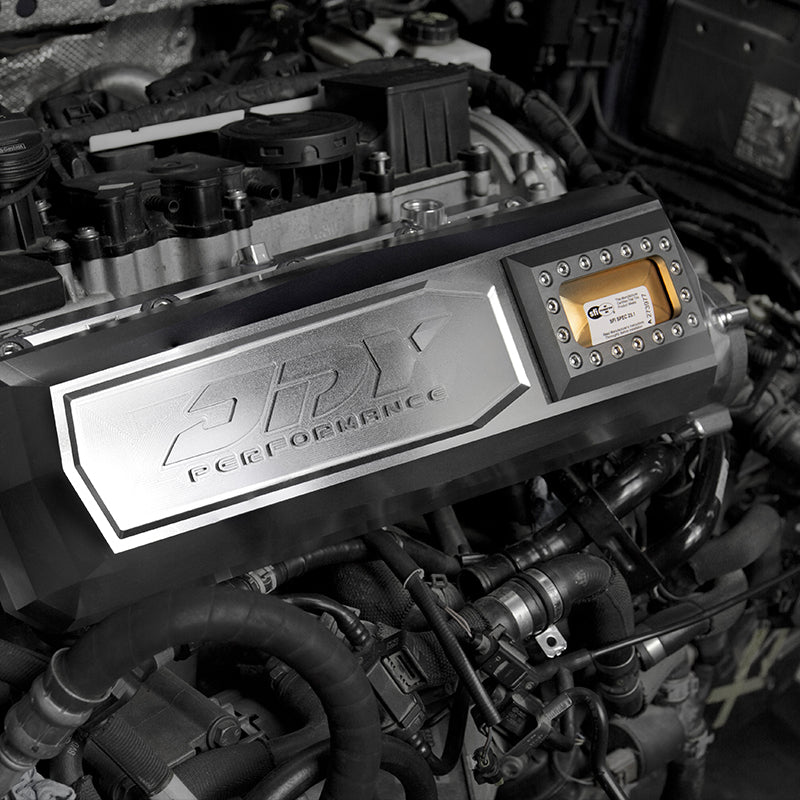

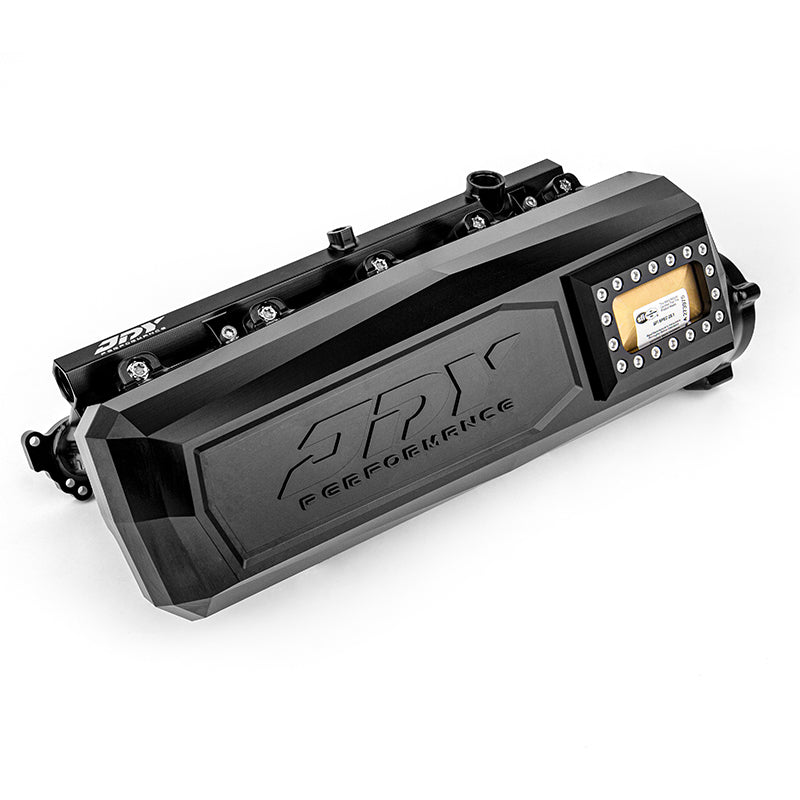

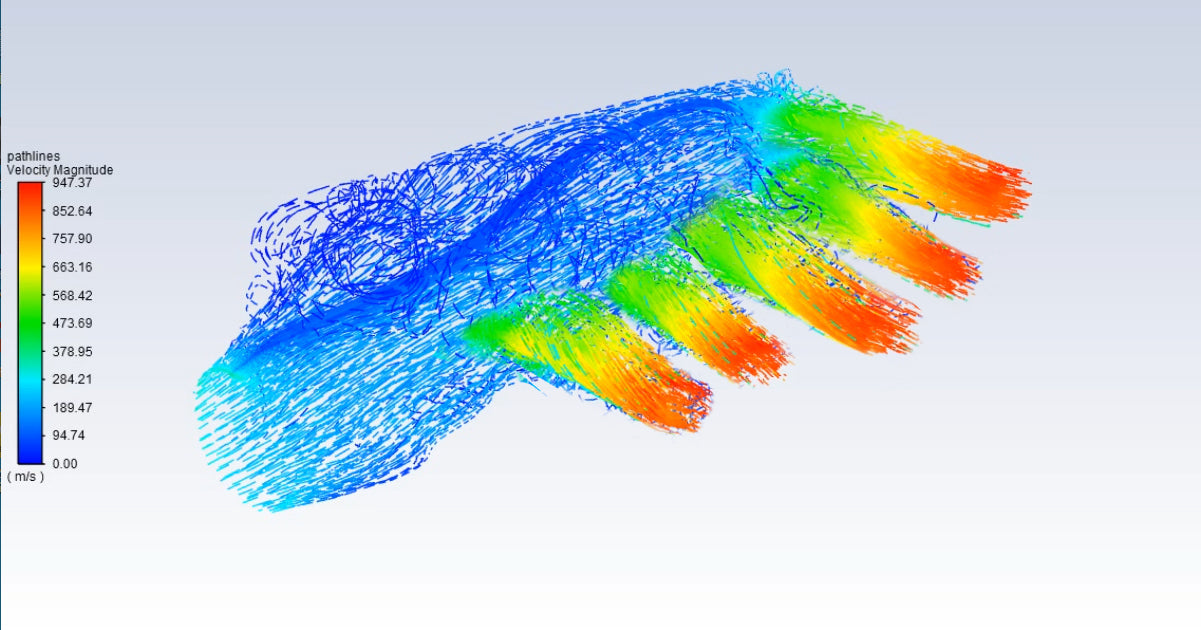

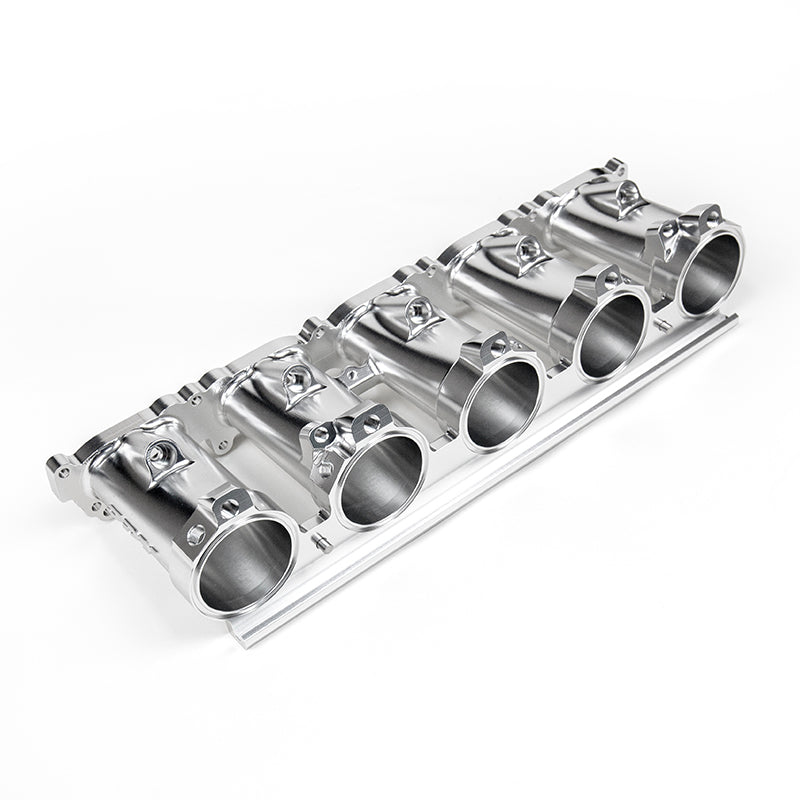

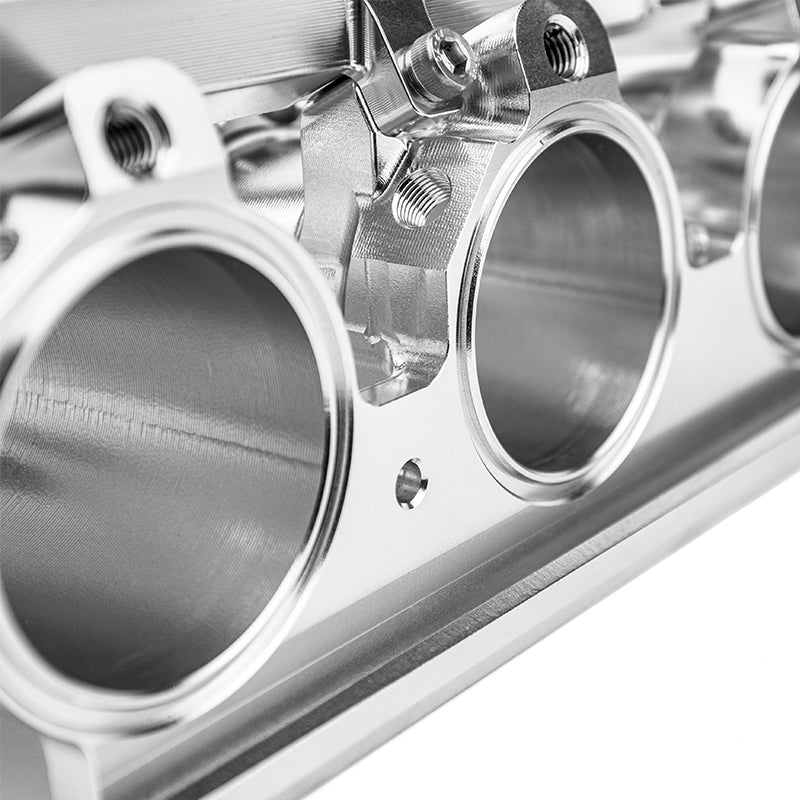

This billet intake manifold from JDY Performance is built for the 2.5 TFSI engine in the Audi RS3 and TT RS, covering the DAZA and DNWA engine codes. JDY quotes an internal volume of 5959ml, about 52% more than the factory manifold, and says the shape was developed with CFD simulation. It is fully CNC machined from billet aluminium with hard surface anodising, and the plenum threads are upgraded to stainless steel sleeves with titanium M8 bolts joining the runners and plenum. Buyers can choose the factory direct injection layout or a direct injection delete runner set with an AN 10 fuel rail, and the runner flaps are deleted either way.
Features
- 5959ml internal volume, about 52% over the factory manifold

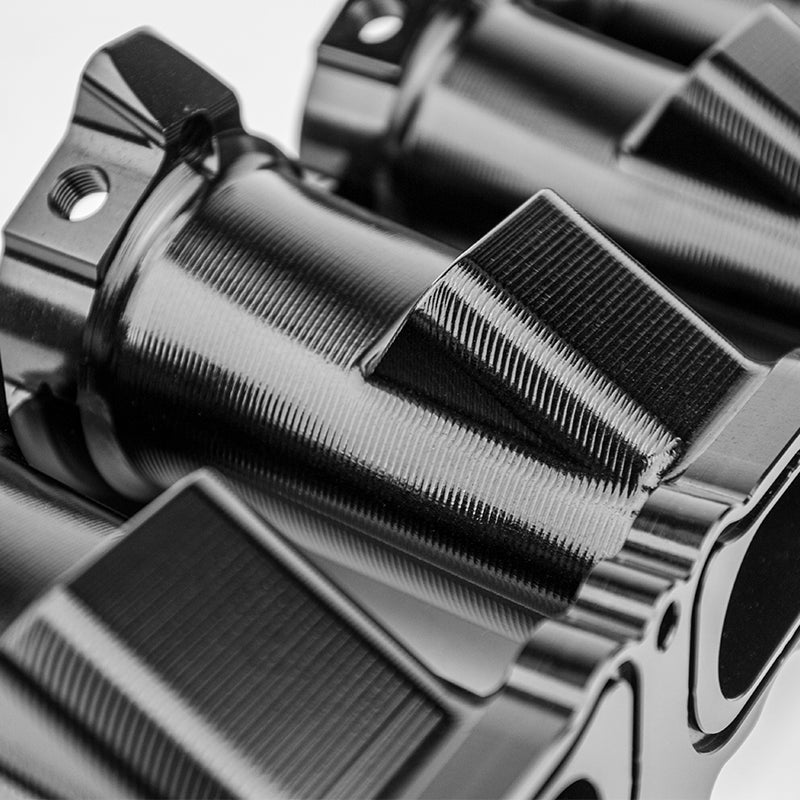

- Billet aluminium, fully CNC machined and hard anodised

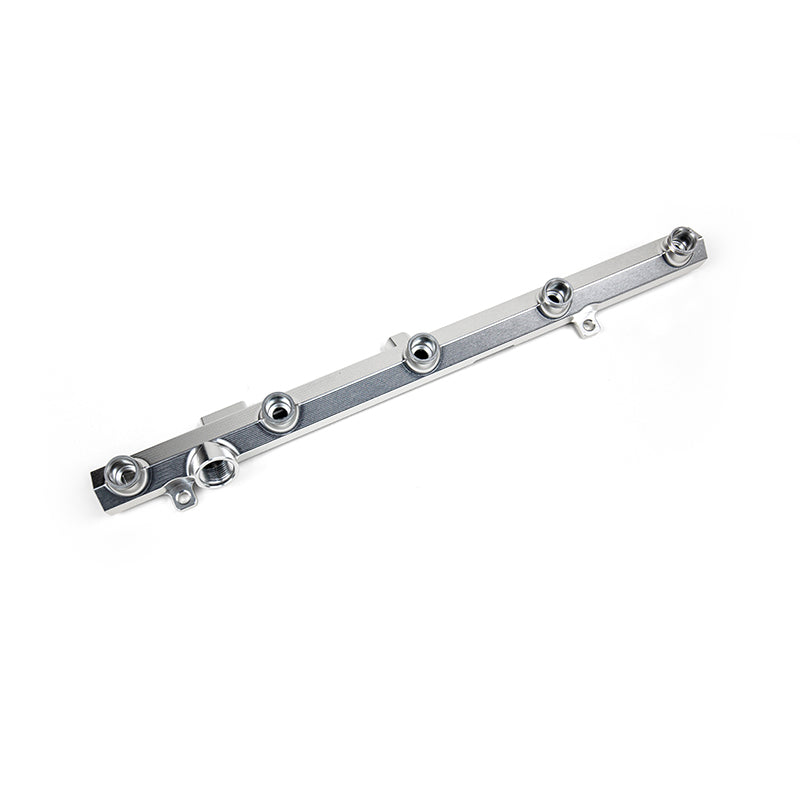

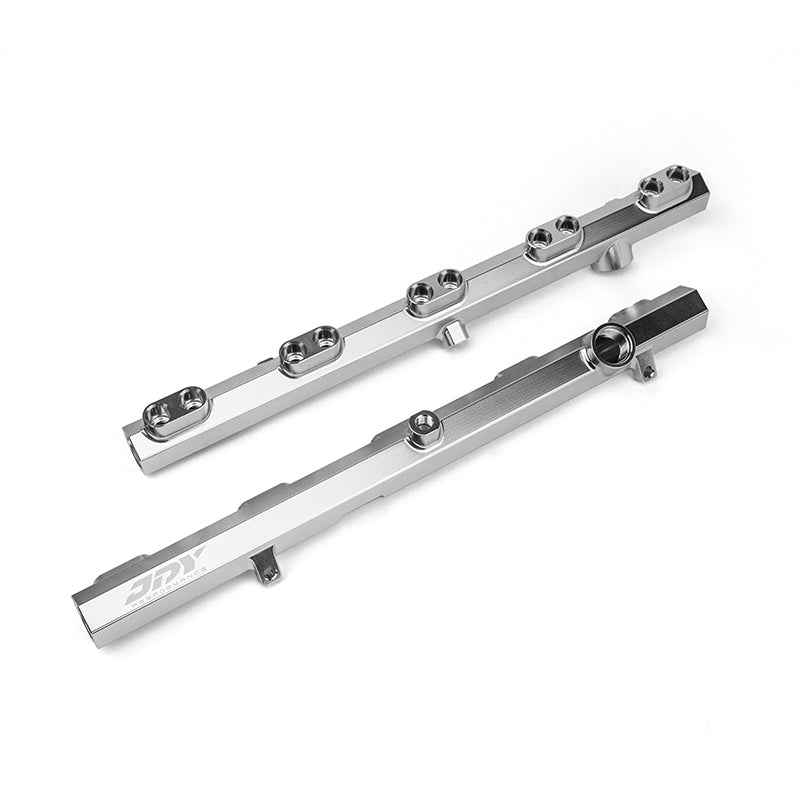

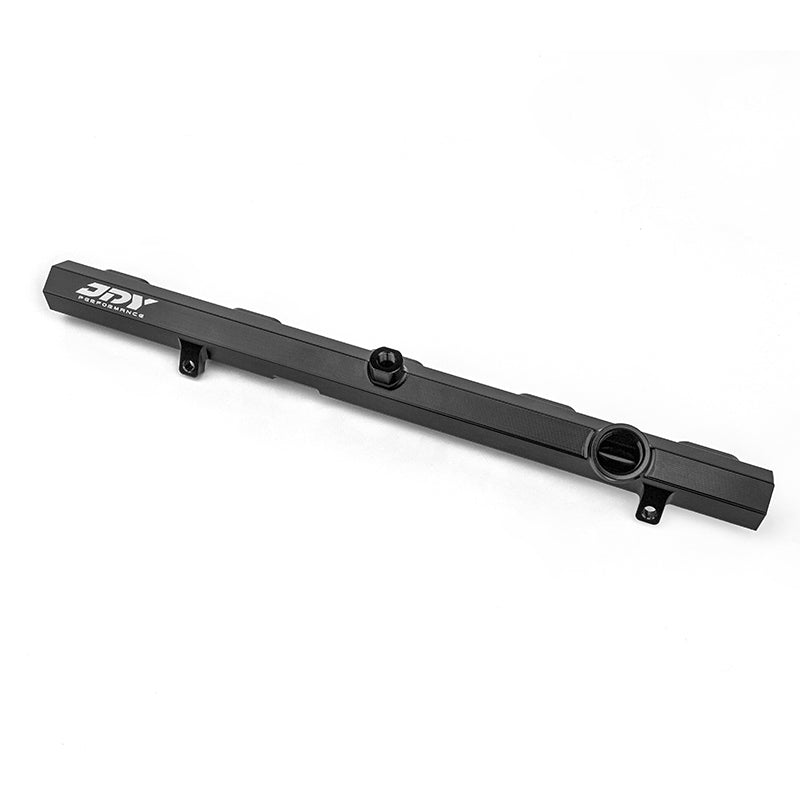

- Optional direct injection delete runners with AN 10 fuel rail
- Runner flaps deleted

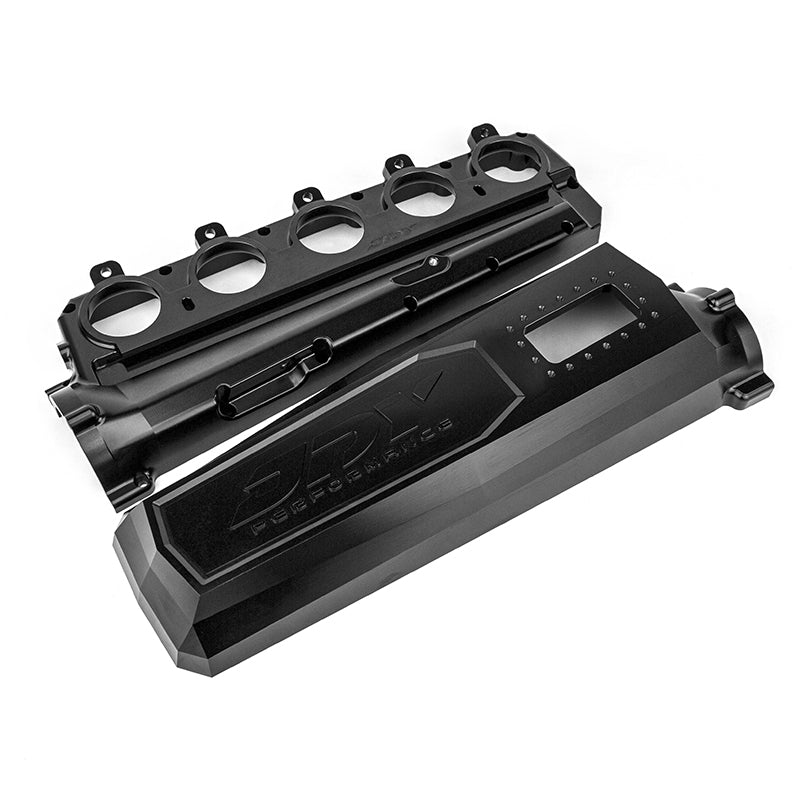

- Burst panel to protect against backfire damage

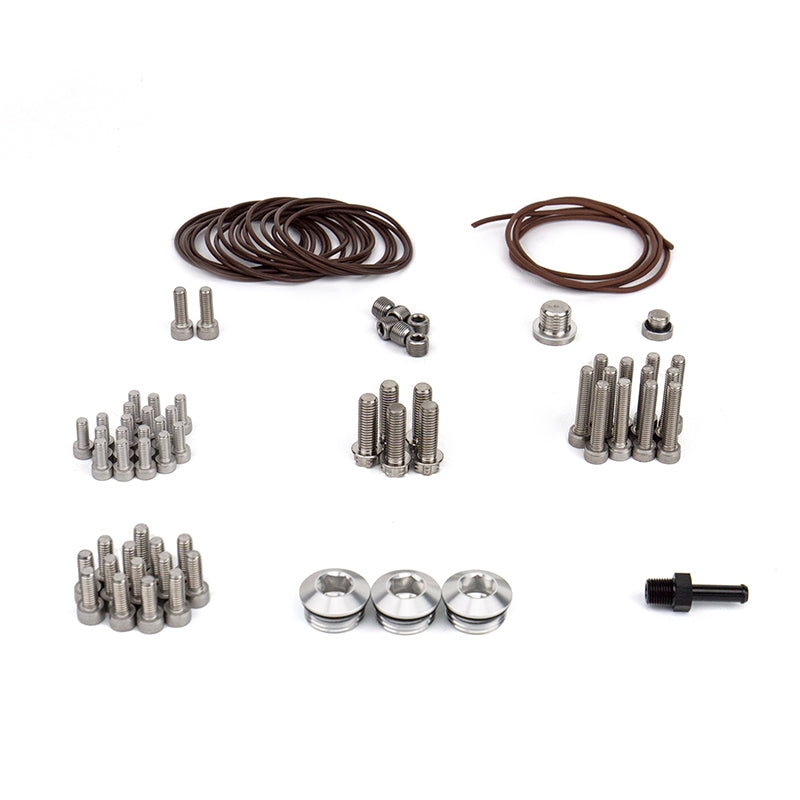

- Stainless steel threaded sleeves and titanium M8 bolts

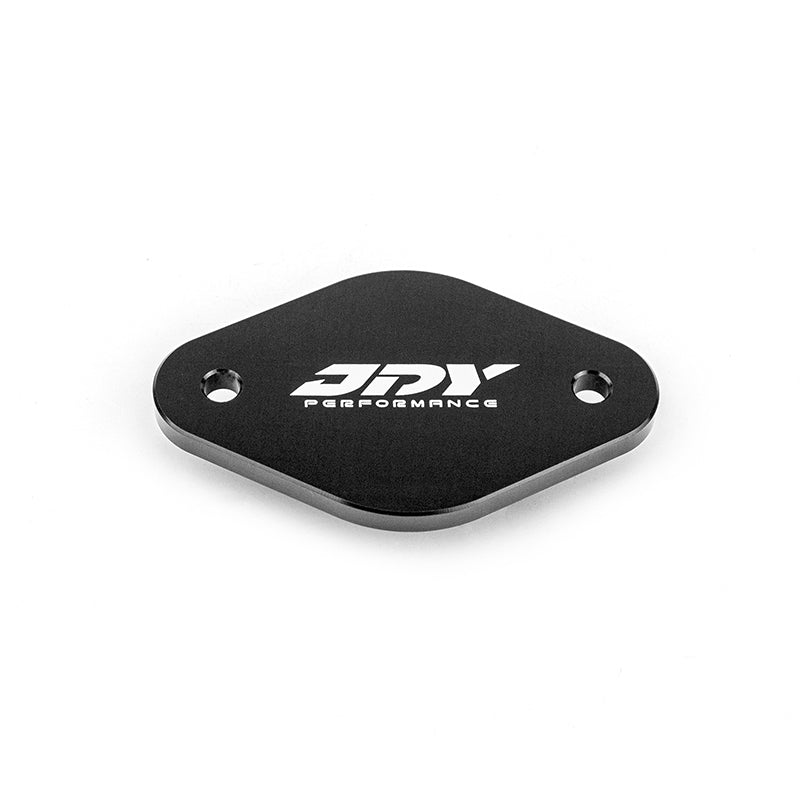

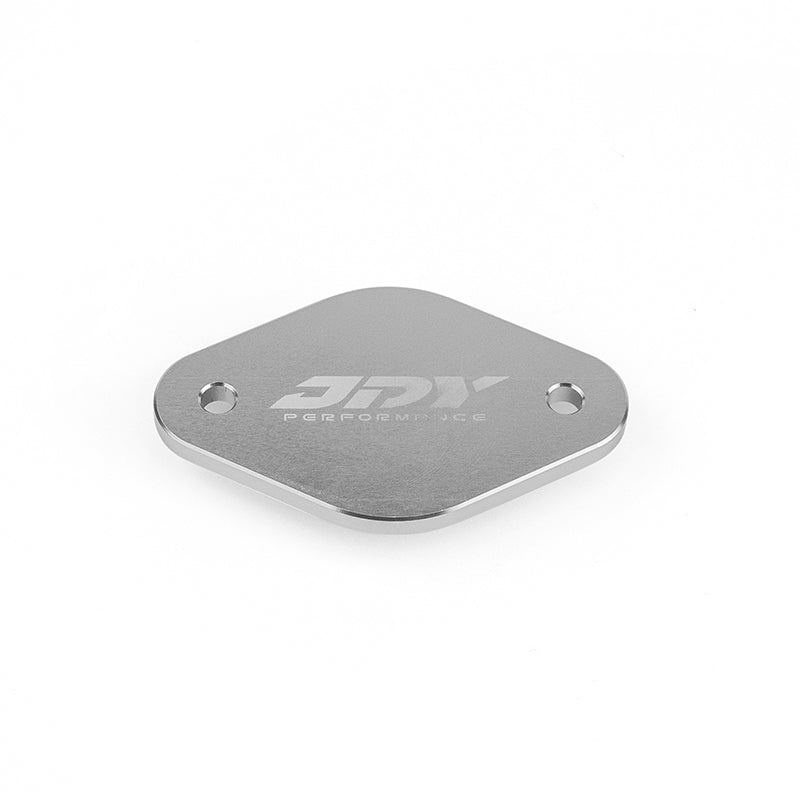

- Water-methanol and vacuum ports, with block-offs supplied
Specifications
- Brand: JDY Performance
- Product Type: Intake Manifold
- Internal Volume: 5959ml (about 52% more than factory, per JDY)
- Material: CNC machined billet aluminium
- Finish: Hard surface anodising
- Colours: Black, Silver
- Injection Options: Stock direct injection, or direct injection delete with AN 10 fuel rail
- Hardware: Titanium M8 bolts, stainless steel threaded sleeves in the plenum
- Water-Methanol Ports: 1/8NPT, block-off nuts supplied
- Part Number: JDY-IM25-SDI-BLK, JDY-IM25-SDI-S, JDY-IM25-DID-BLK, JDY-IM25-DID-S
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| RS3 | 8V/8Y | 2.5 TFSI (DAZA/DNWA) | |
| TT RS | 8S | 2.5 TFSI (DAZA/DNWA) |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
