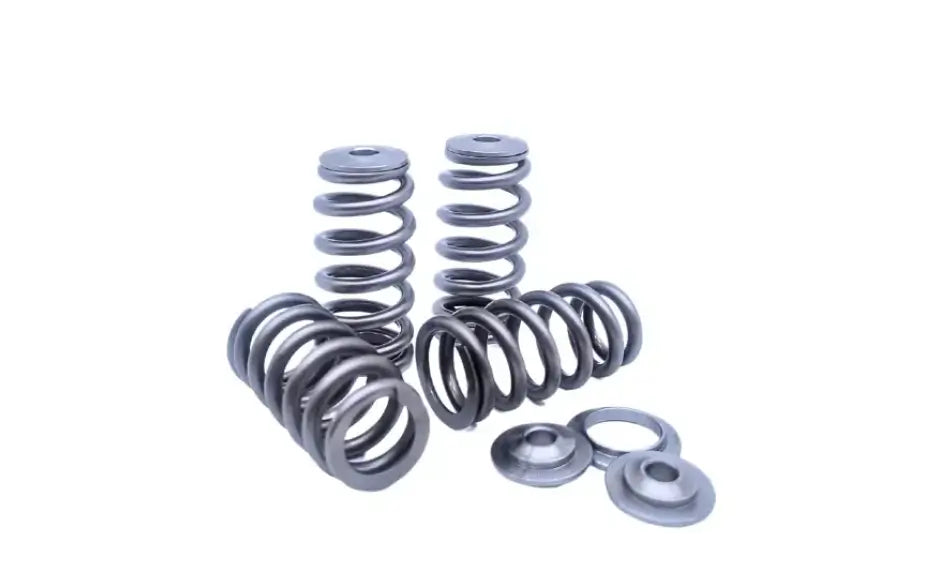

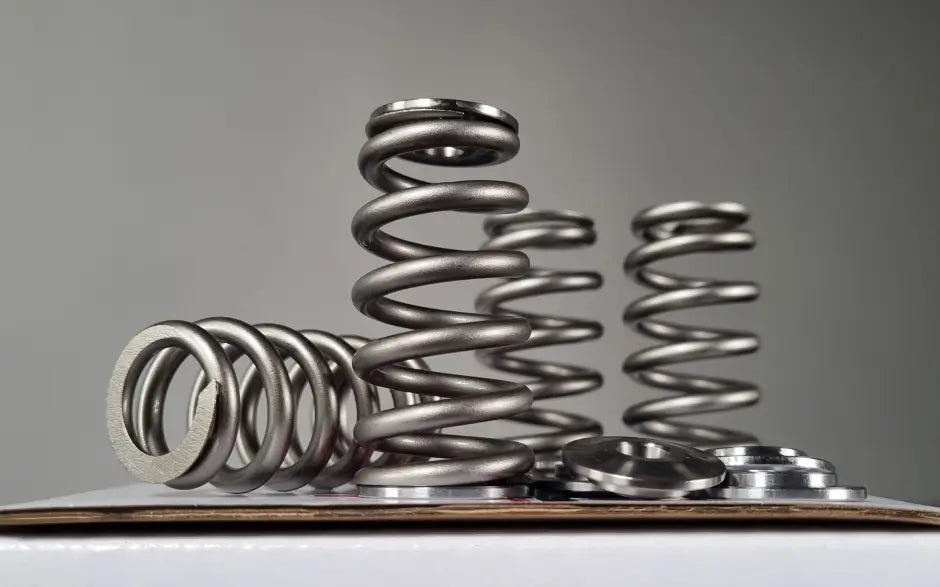

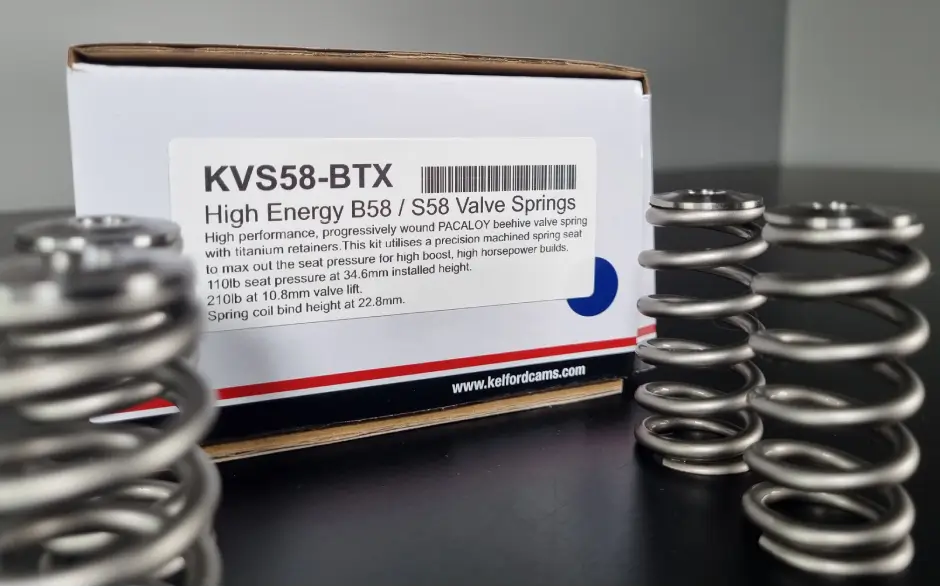

This extreme racing valve spring kit from Kelford Cams is made for the BMW B58 and S58 3.0L inline-six engines. The springs are progressively wound PACALOY beehive units with titanium retainers, and a precision machined spring seat raises the seat pressure for builds running high boost and high horsepower. Kelford says the kit is designed for its Stage 2 and Stage 3 camshafts in engines making over 1000HP. Kelford quotes 105lb of seat pressure at a 35mm installed height and 210lb at 10.8mm of valve lift, with a coil bind height of 23.6mm.
Features
- Progressively wound PACALOY beehive valve springs
- Titanium retainers
- Precision machined spring seat for high seat pressure
- 105lb seat pressure at 35mm installed height
- 210lb at 10.8mm valve lift
- Coil bind height of 23.6mm
- Designed for Kelford Stage 2 and Stage 3 cams, over 1000HP
Specifications
- Brand: JDY Performance
- Product Type: Valve Springs
- Manufacturer: Kelford Cams
- Spring Type: Progressively wound PACALOY beehive
- Retainers: Titanium
- Seat Pressure: 105lb at 35mm installed height
- Pressure at Lift: 210lb at 10.8mm valve lift
- Coil Bind Height: 23.6mm
- Engine: BMW B58 / S58 3.0L inline 6
- Part Number: KVS58-BTX
Vehicle Compatibility: Suits BMW B58 and S58 3.0L inline-six engines; check your engine code before ordering.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
